Warren Rupp Sandpiper





Fluid Engineering is proud to be the sole distributor in Alabama for the Warren Rupp SANDPIPER® line of Air-Operated Double Diaphragm (AODD) pumps.

Founded in 1965, Warren Rupp, Inc. shipped the first ‘SANDPIPER®” AODD pump in July 1968.  It was the first AODD pump designed to handle solids of any appreciable size.  Using a flap-type check valve made this possible, and the in-the-top and out-the-bottom configuration made the pump a success. Why the name SANDPIPER pump? To accelerate wear during the development of the pump, a slurry of very abrasive silica sand was continuously cycled through the pump. The sand slurry often wore through the piping before the pump failed. Since the sand was pumped through a pipe, Warren E. Rupp, the company founder, named the pump the “SANDPIPER.”

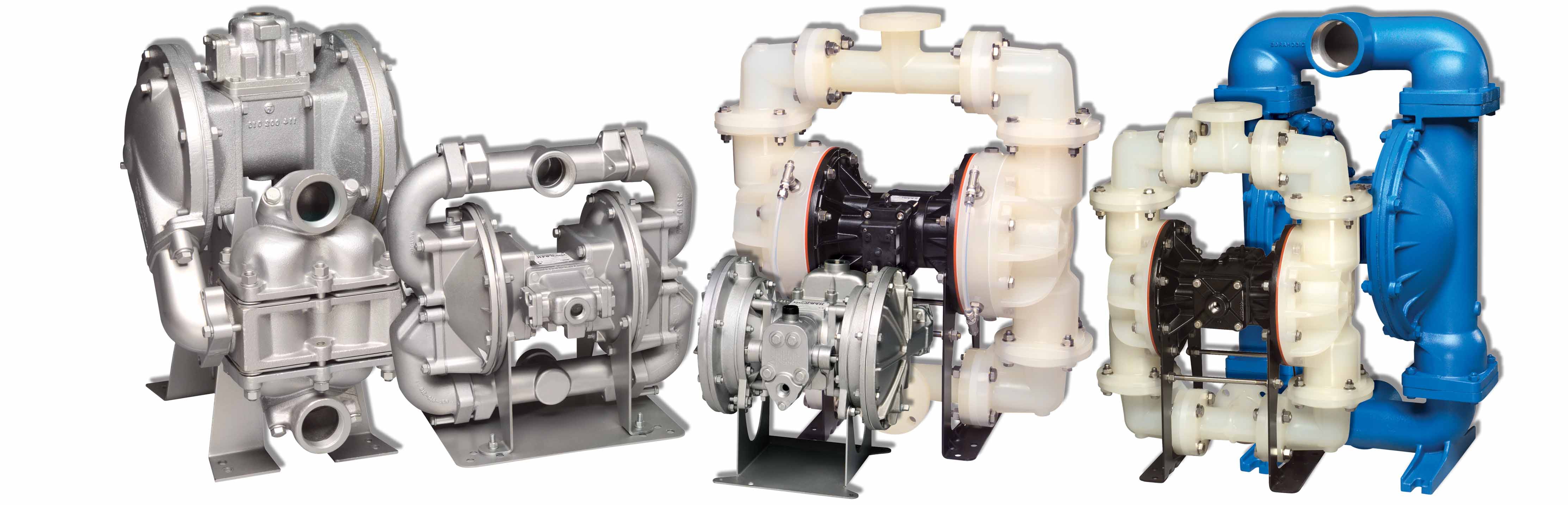

Product information

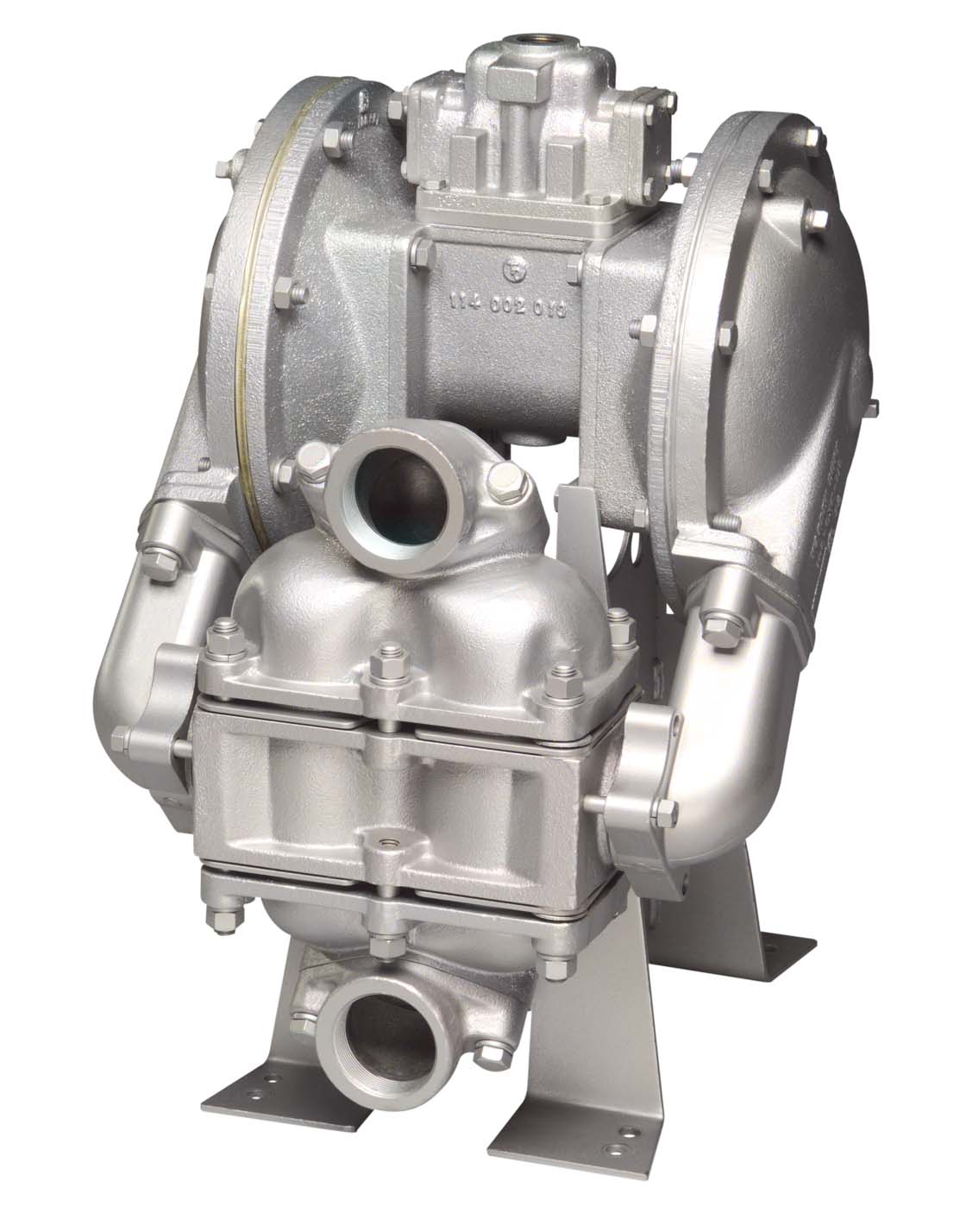

Warren Rupp HDB PumpHeavy Duty Ball (HDB) Series
HDB Metallic Pumps are ideal for thin to highly viscous and small solids laden fluids.  SANDPIPER® Heavy Duty Ball Valve Pumps provide excellent suction lift capability and exclusive variable porting options (side, top, bottom, and dual). HDB pumps are thick wall constructed of Sand Casted Aluminum, Cast Iron, Stainless Steel, or Hastelloy-C with elastomer, TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. HDB pumps are enhanced with an extended wear package.

HDB Models

Warren Rupp HDF PumpHeavy Duty Flap (HDF) Series
HDF Pumps are recommended for abrasive slurries, suspended and non-suspended solids and line-size solids requirements.  All SANDPIPER® Heavy Duty Flap Valve pumps are configured in bottom discharge porting arrangements and provide superior suction lift. HDF pumps are thick wall constructed of Sand Casted Aluminum, Cast Iron and Stainless Steel with elastomer, TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves. HDF pumps are enhanced with an extended wear package.

HDF Pump Models

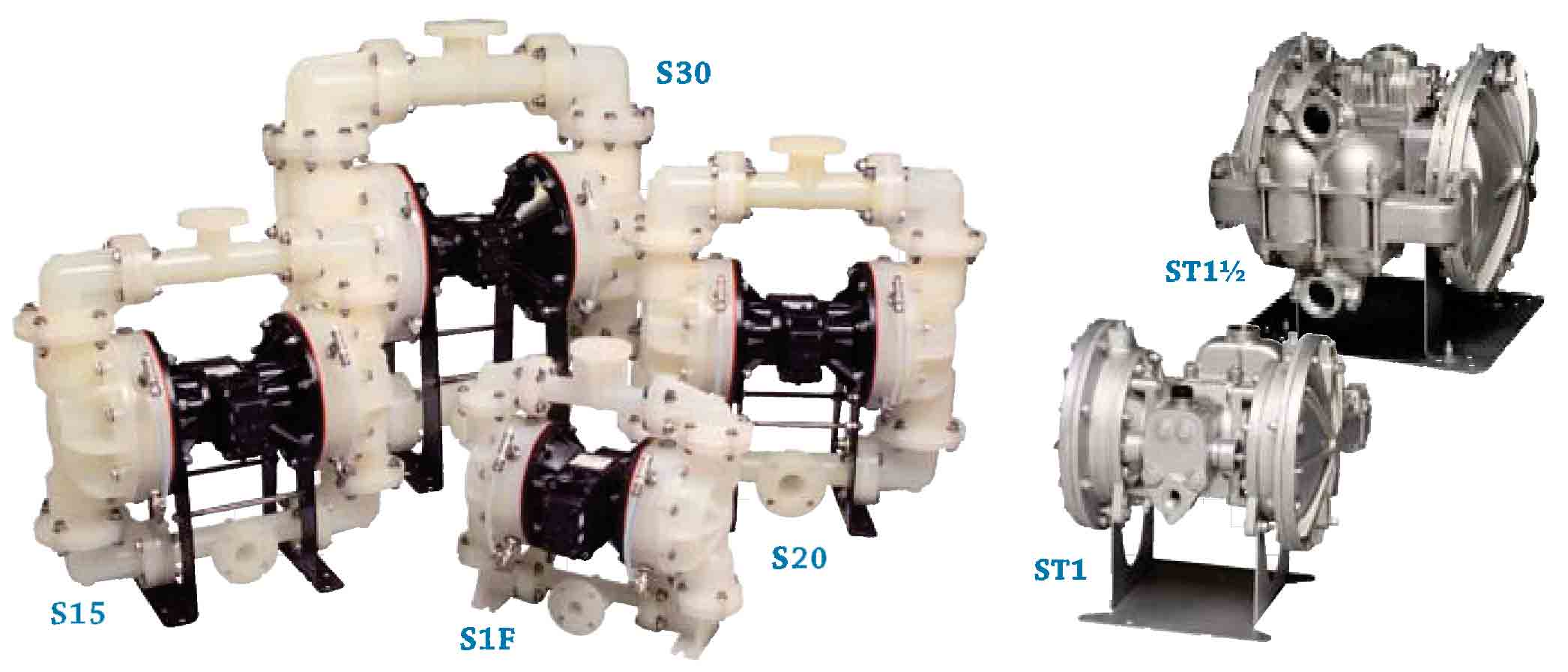

Containment Duty Ball
Containment Duty Metallic and Non-Metallic Pumps are ideal for highly corrosive and hazardous chemical fluid requirements. All CD duty pumps are exclusively designed with containment chambers, hydraulically balanced/coupled pumping diaphragm and driver diaphragm assemblies. All containment chambers are designed to accommodate visual, mechanical and low-voltage eak detection devices. CD pumps are constructed of Aluminum, Cast Iron, Stainless Steel, Alloy C, Polypropylene, and PVDF with TPE (thermal plastic elastomers), PTFE options in diaphragms and check valves.

Containment Duty Ball Pump Models

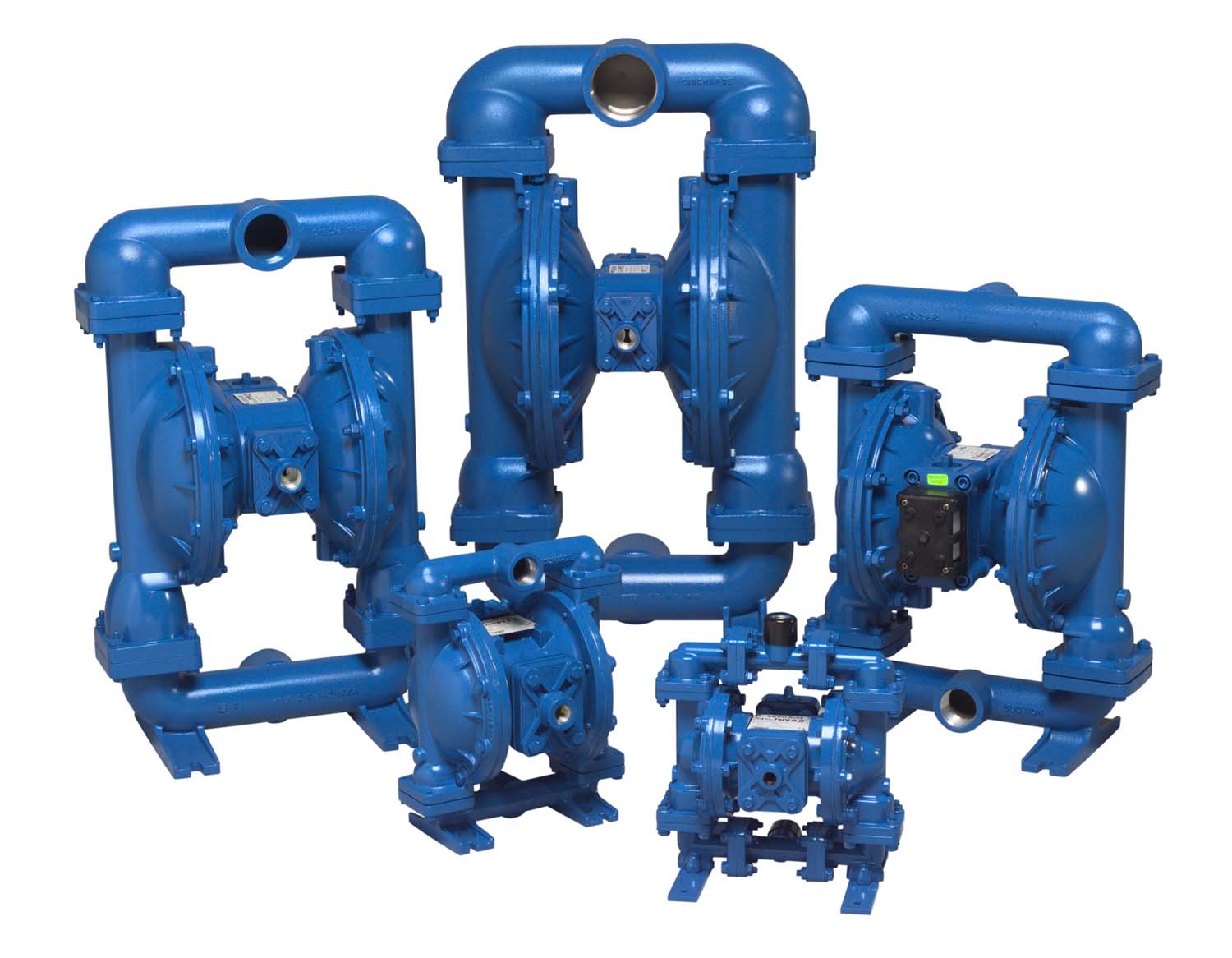

S Metallic Series
Standard Duty Metallic Pumps are ideally suited for intermittent/on-demand, portable moderately abrasive fluids, and suspended solids. Standard duty metallic pumps are constructed in Aluminum, Cast Iron, Stainless Steel and Alloy C with elastomer TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

S Metallic Pump Models

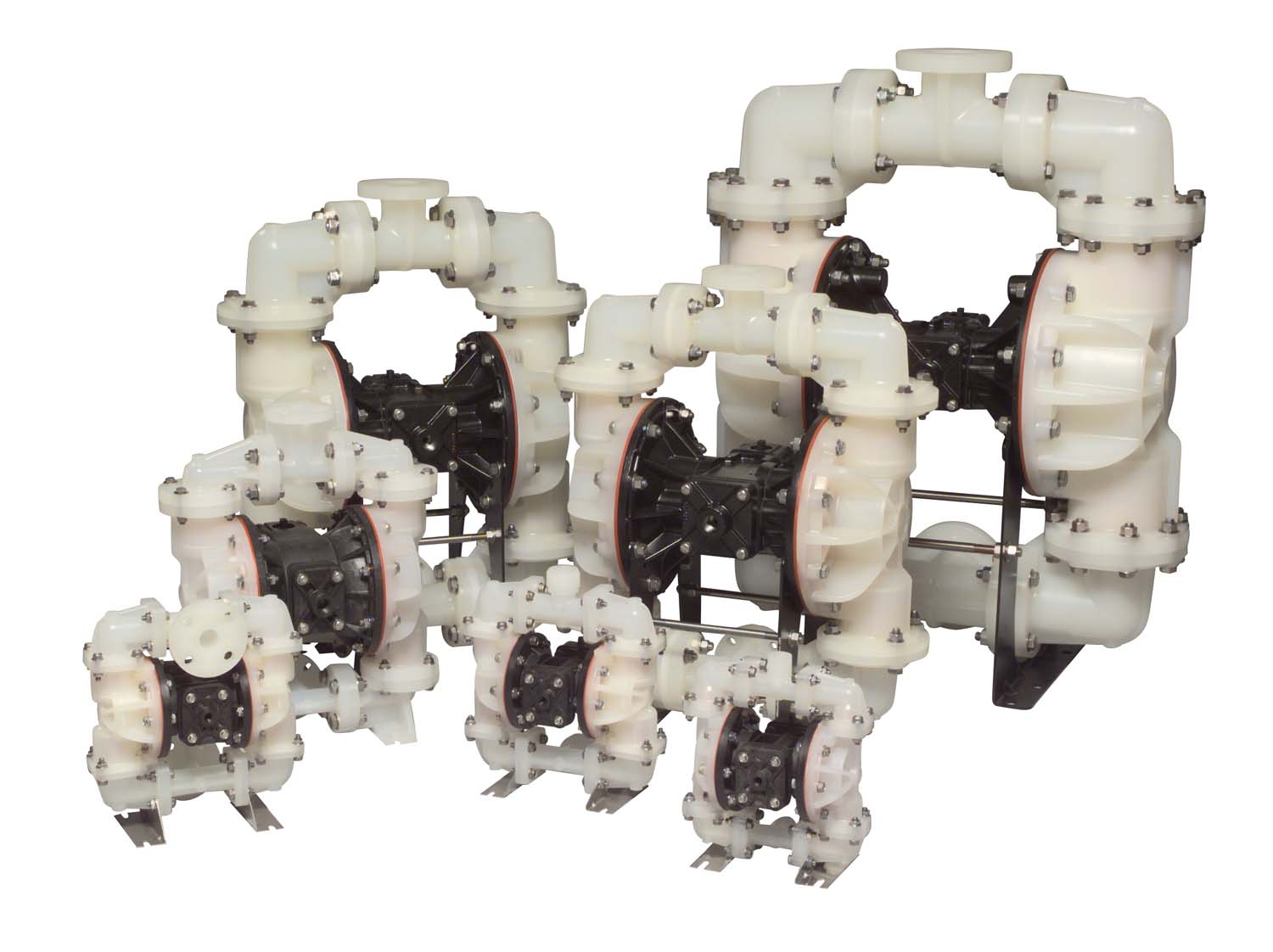

S Non-Metallic Series
Standard Duty Non-Metallic Pumps are ideally suited for highly corrosive fluids, intermittent/on-demand, portable, low abrasive fluids, and suspended solids. Standard duty non-metallic pumps are constructed in Polypropylene, PVDF, Conductive Acetal and Conductive Polypropylene with TPE (thermal plastic elastomers) and PTFE options in diaphragms and check valves.

Non-Metallic Pump Models

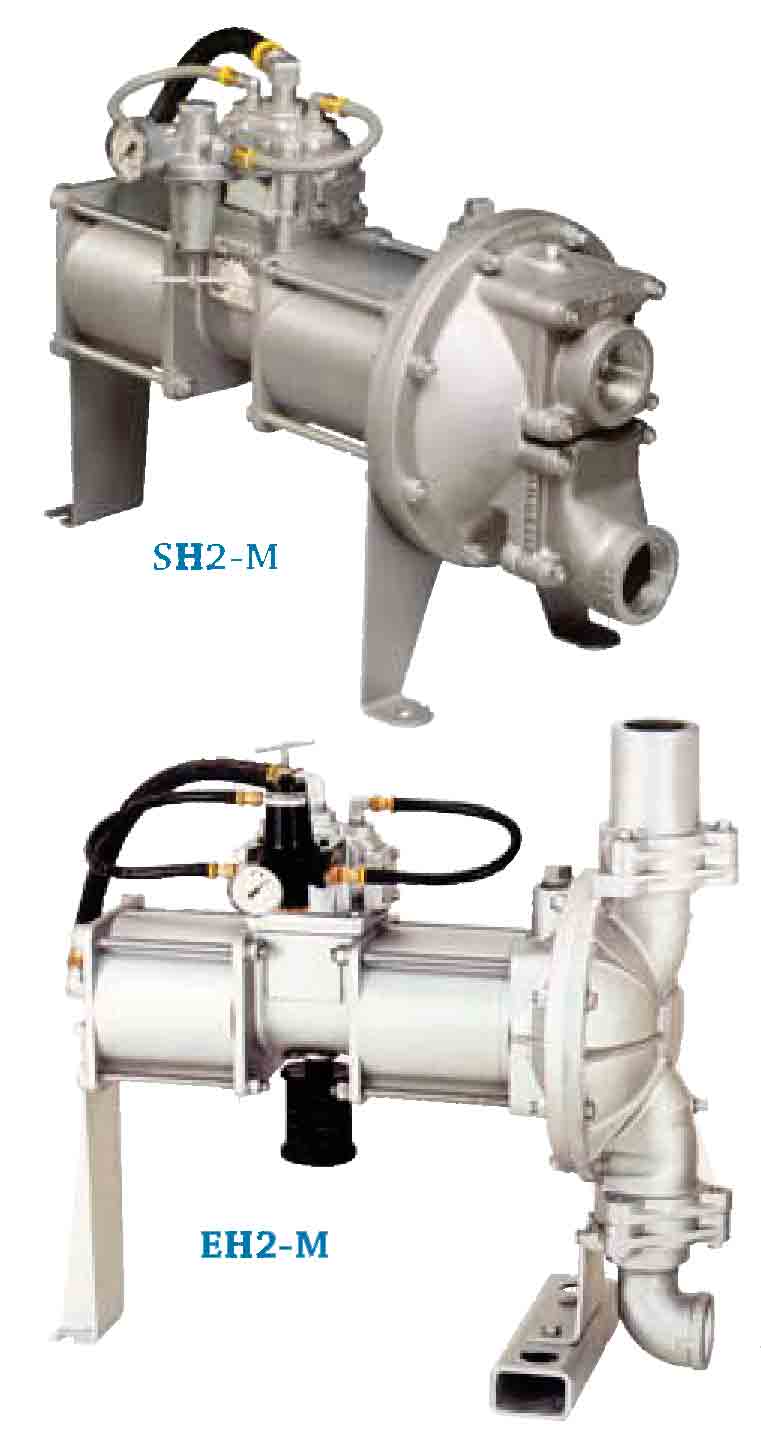

Warren Rupp Hi-Pressure PumpsHigh Pressure Duty
Air-powered single diaphragm high pressure metallic pumps deliver discharge pressure twice the inlet pressure, up to 250 PSI (17 BAR). Designed for filter press feed and applications requiring higher discharge pressures. Available in Aluminum, Cast Iron, and Stainless Steel with various elastomer options.

Warren Rupp also manufactures built-to-order, multi-pump systems that combine a high volume fill pump with a high pressure feed pump. Frequently used for filter press feed applications, these systems produce operating pressures to 250 PSI. This results in shortened press cycles, drier cake and less costly disposal.

High Pressure Pump Model

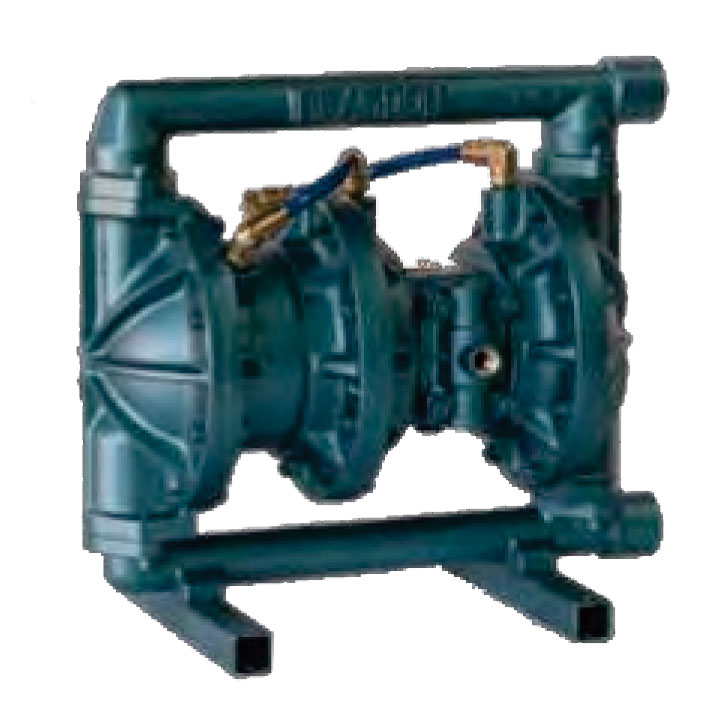

High Pressure Duty - Blagdon
 Blagdon 1" and 2" High-Pressure Pumps provide enhanced power in applications where pressure is paramount and flow rate is an issue. Using two air chambers to double the air per stroke, the Blagdon Pumps achieves discharge pressures up to 238 PSI with flow rates as high as 30 GPM (for the 1") and 90 GPM (for the 2").

The pumps' full flow design incorporates an additional air chamber to deliver higher flow rates with less pulsation, so there's less wear on pipes and fittings. In addition, the pumps can start at zero head pressure with no damage to diaphragms and no need for a separate fill pump.

The Blagdon High-Pressure Pumps are available in either aluminum or stainless steel. They feature a non-stalling, non-icing air valve system with shoe-valve technology to eliminate blow-by.

Blagdon 1" and 2" High-Pressure Pumps

Special Duty - UL Pumps
UL (Underwriters Laboratory)  Pumps are designed to meet UL79 standards for diaphragm pumps handling flammable liquids.  They featue all-aluminum construction with approved Buna or Virgin PTFE UL elastomers.  The pumps are fully groundable to prevent static discharge.

UL Pump Models



Dewatering Duty - Submersible Pumps Submersible Pumps
PortaPump®

The PortaPump® Submersible, Battery-Powered Pump (Model SPA1½-E) operates using any 12-volt car or truck battery. It comes equipped with cables and battery clips. Expremely portable, the pump weighs only 33 pounds and can fit through openings as small as 10”. Electrically safe and whisper quiet.

PortaPump®  Models

SludgeMaster™
The SludgeMaster™ Submersible, Air-Powered Trash Pump (Model SMA3-A) handles mud, leaves, twigs, sand, trash-laden water and soft solids to 1½”. The pump provide high capacity at low head. The pump weighs only 59 pounds, and can fits through an opening as small as 14”. It features sturdy construction for rough handling and long life. An optional rock screen is available.

SludgeMaster™Models

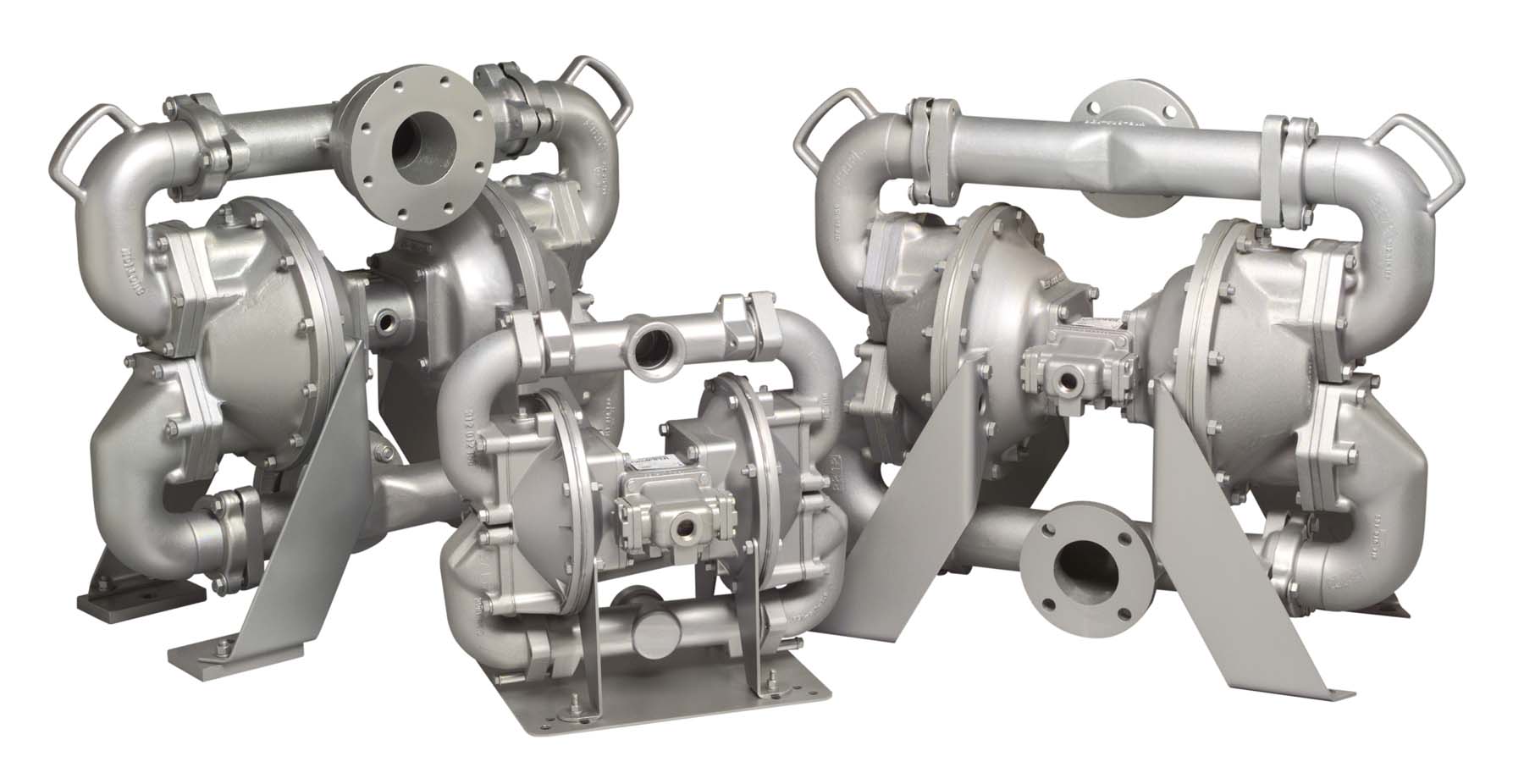

Special Duty - USDA (United States Department of Agriculture) Pumps



SSB1 / DSB1
Designed to meet USDA Standards. 1½" Ball Valve, 0 to 54 GPM. Handles solids to 1/4", Top Discharge

SSB2 Metallic
Designed to meet USDA Standards. 2" Ball Valve, 0 to 125 GPM. Handles solids to 1/4", Top Discharge

SSA2 Metallic
Designed to meet USDA Standards. 2½" Flap Valve, 0 to 150 GPM. Handles solids to 1-1/16", Top or Bottom Discharge.

SET1 Metallic
Sanitary Pump designed to meet USDA Standards. 1" Ball Valve, 0 to 54 GPM. Handles solids to 1/4", Top Discharge.

SET2 Metallic
Sanitary Pump designed to meet USDA Standards. 2" Ball Valve, 0 to 123 GPM. Handles solids to 1/4", Top Discharge

Special Duty Ball - Natural Gas
Natural Gas Operated Pumps are CSA* (Canadian Standards Association) certified for operation using sweet or sour natural gas. The pumps are also compliant with NACE Standard MR0175/ISO15156. The gas pump utilizes Aluminum or 316 Stainless Steel wetted construction with Buna or Virgin PTFE diaphragms and check balls. The gas valve is constructed of Aluminum with Buna or FKM (fluorocarbon) elastomers. Pumps are fully groundable, preventing static discharge. A Stainless Steel gas valve option is available on G15 to G30 for more corrosive applications.

*CSA is the Canadian Standards Association, an international organization for testing products to ensure public safety, and the governing agency for the Natural Gas Industry.

Gas Pump Models

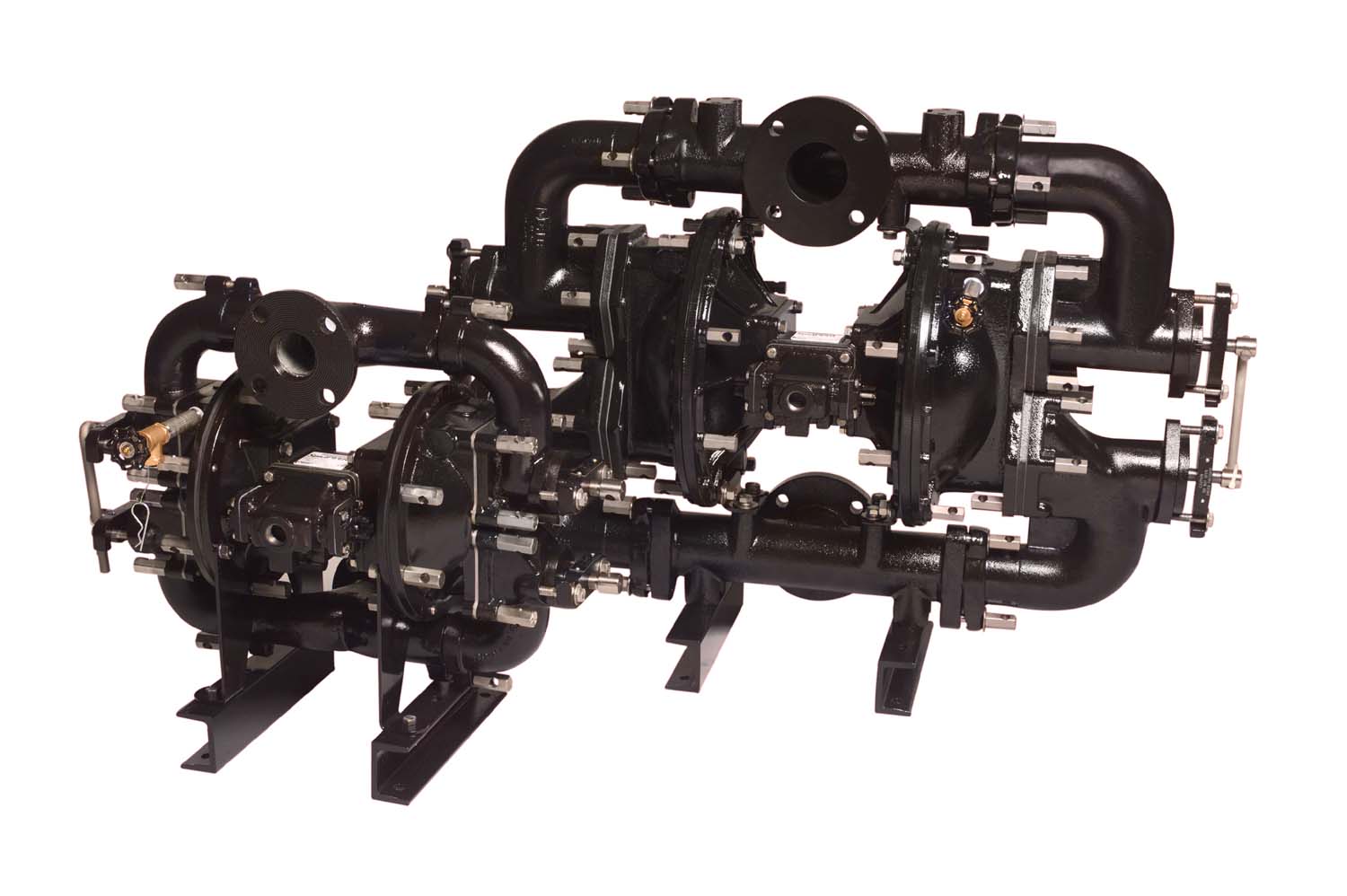

W Series
SANDPIPER® Wastewater W Series Metallic Pumps are fitted with swing check valves and easy access clean-outs. The pumps are designed specifically for slurry and solids-laden materials.  Flap valves allow passage of suspended, pipe-size solids and stringy material. Constructed of cast iron with a durable epoxy coating.

W Pump Models
